| Material | Tungsten steel/carbide |
| Whether to support customization | YES |
| OEM & ODM | OK |
| Suitable for | aluminum or steel |

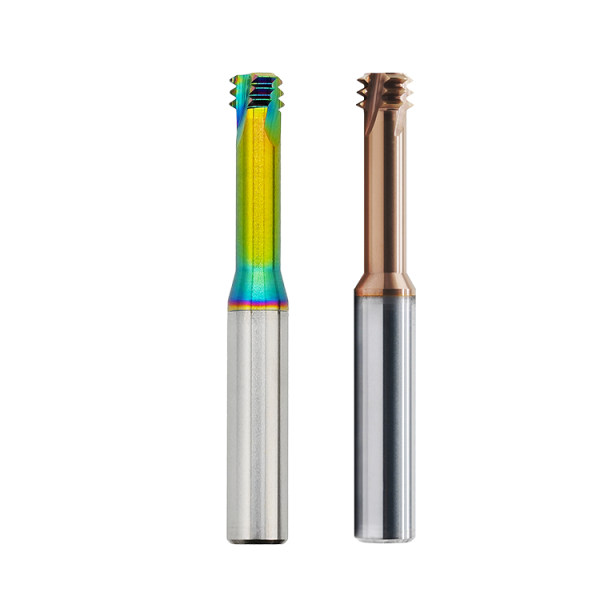

| used for | coating | picture |

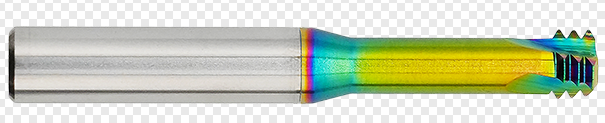

| aluminum | Colorful |  |

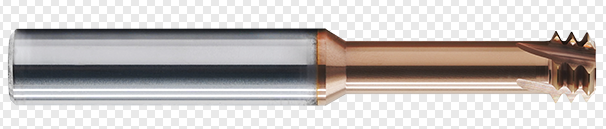

| steel | Nano bronze |  |

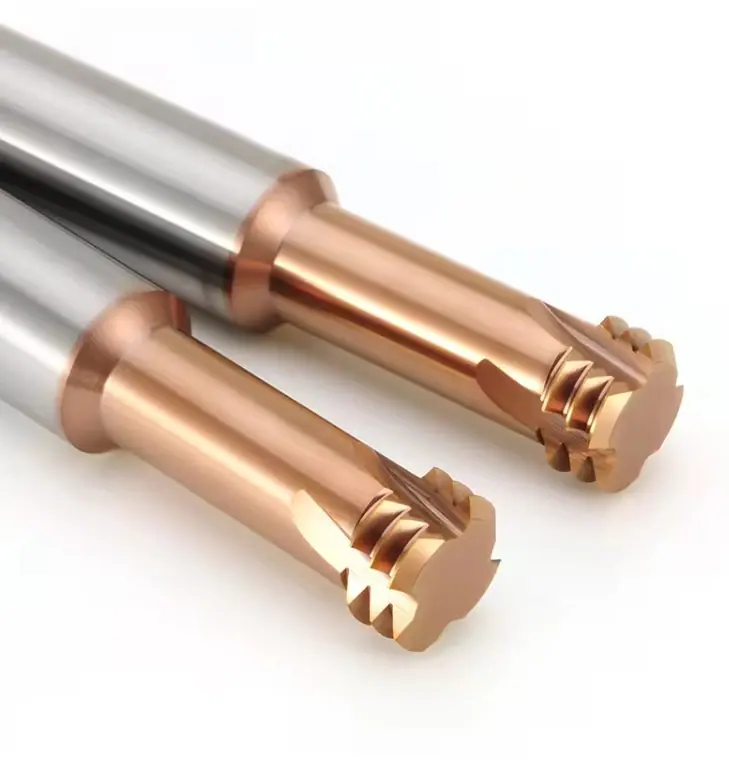

ISO metric 3teeth end mill for aluminum or steel specification table:
| Thread | Pitch | size | Chip flute | Recommended bottom hole | |||
| ISO standard flute | mm | Shankr(mm) | Flute Diameter(mm) | Flute Length(mm) | Overall Length(mm) | Z | mm |
| M1＊0 . 25 | 0 . 25 | 4 | 0.7 | 2 . 8 | 50 | 3 | 0 .75 |
| M1 . 2＊0 . 25 | 0 . 25 | 4 | 0 . 9 | 3.2 | 50 | 3 | 0 . 95 |
| M1 . 4＊0 . 3 | 0.3 | 4 | 1 . 05 | 3 . 4 | 50 | 3 | 1.1 |
| M1 . 6＊0 . 35 | 0 . 35 | 4 | 1.2 | 3.5 | 50 | 3 | 1 . 25 |
| M1 . 8＊PO. 35 | 0 . 35 | 4 | 1 .4 | 3 . 8 | 50 | 3 | 1 .45 |
| M2＊0 . 4 | 0.4 | 4 | 1 . 55 | 4 . 3 | 50 | 3 | 1.6 |
| M2 . 5＊0 . 45 | 0 . 45 | 4 | 1 . 95 | 5.3 | 50 | 3 | 2 . 05 |
| M3＊0 . 5 | 0 . 5 | 4 | 2 . 4 | 6.6 | 50 | 3 | 2.5 |
| M3 . 5＊0 . 6 | 0.6 | 4 | 2 . 75 | 7 . 6 | 50 | 3 | 2.9 |
| M4＊0 . 7 | 0 . 7 | 4 | 3 . 15 | 8 . 6 | 50 | 3 | 3.3 |
| M5＊0 . 8 | 0 . 8 | 4 | 3 . 9 | 10 . 5 | 50 | 3 | 4.2 |
| M6＊1 . 0 | 1 | 6 | 4.8 | 14 | 57 | 3 | 5 |
| M8＊0 . 75 | 0 . 75 | 6 | 5 . 95 | 16.6 | 50 | 3 | 7 . 25 |
| M8＊1 . 25 | 1 . 25 | 6 | 5 . 95 | 16 . 5 | 57 | 3 | 6.8 |
| M10＊1 . 5 | 1.5 | 8 | 7 . 95 | 22 | 60 | 4 | 8.5 |
| M12＊1 . 75 | 1 . 75 | 10 | 9 . 9 | 27 | 70 | 4 | 10 . 3 |
| M14＊1 . 5 -M16＊1 . 5 | 1.5 | 12 | 11 . 9 | 30 | 75 | 4 | 12 . 5 - 14. 5 |
| M14＊2 -M16＊2 | 2 | 12 | 11.6 | 33 | 75 | 4 | 12 - 14 |
| M20＊2 . 5 | 2 . 5 | 14 | 13 . 9 | 41 . 3 | 90 | 5 | 17. 5 |
| M24＊3 . 0 | 3 | 16 | 15 . 9 | 50 | 5 | 21 | |
