Micro-Diameter Flat End Mill

Material	Tungsten steel/carbide
Whether to support customization	YES
Hrc	56°
OEM & ODM	OK
Suitable for	aluminum

Product Detail

Micro-DiameterFlatEndMill is a type of CNC tool, mainly used for processing tiny parts. It has the following characteristics:
1. The rake angle of the cutting edge is large, the back angle is small, and the cutting force is small;
2. The tip of the knife is sharp and durable;
3. Large chip holding space;
4. Can process workpieces with complex shapes or that are difficult to process

HRC	Coating	picture

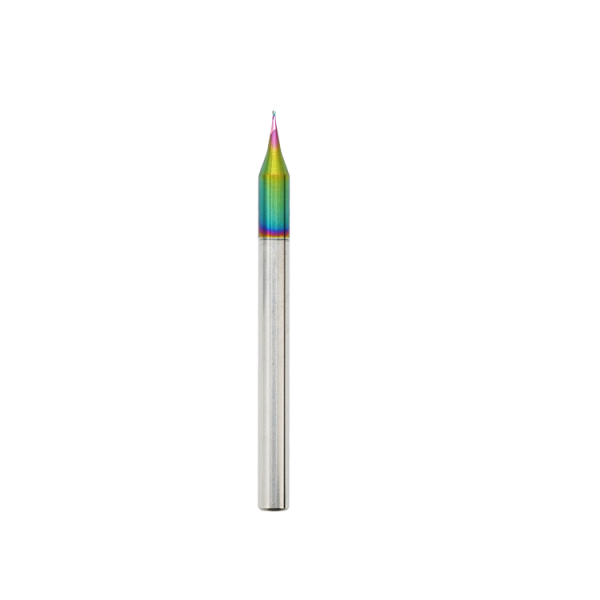

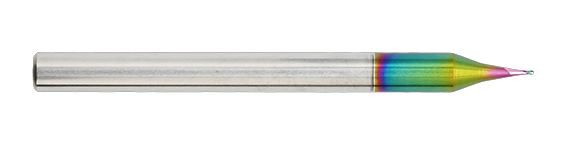

56°	DLC colorful

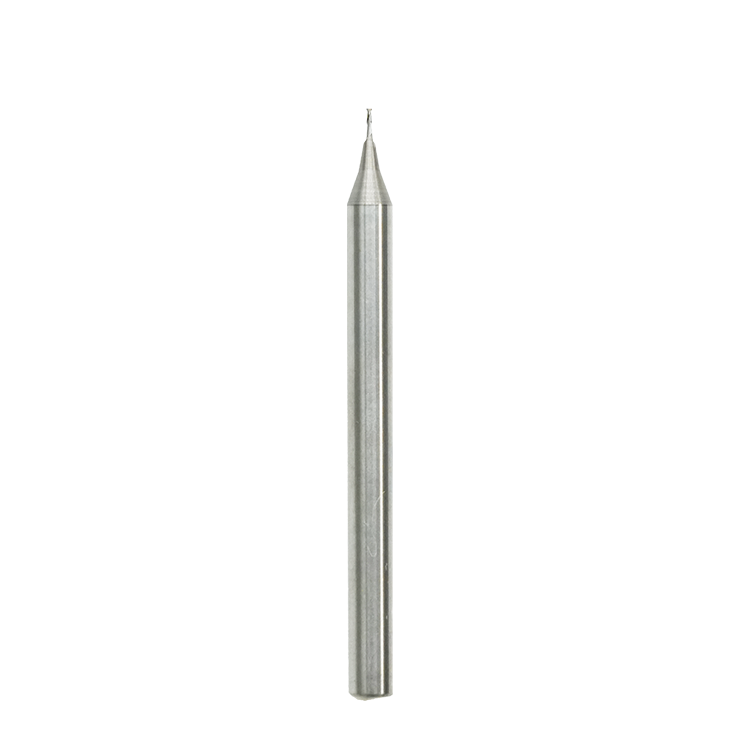

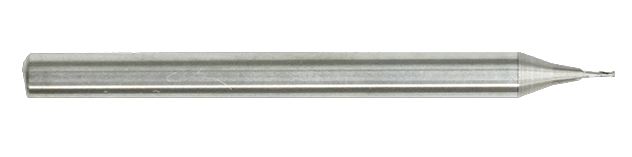

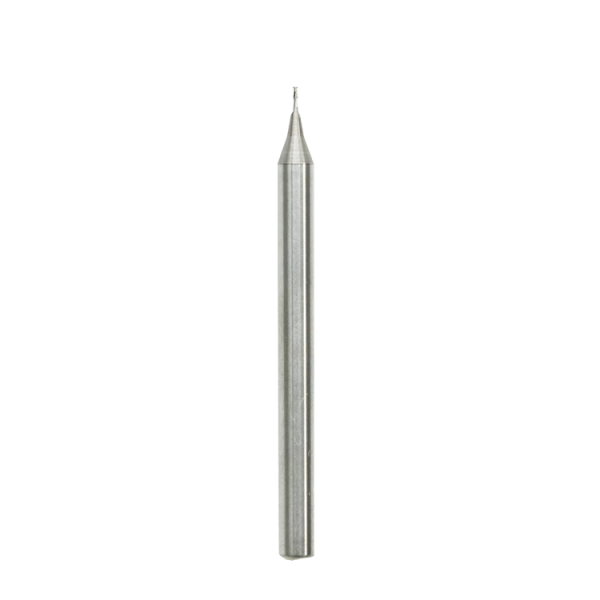

56°	Uncoated

HRC56°micro-diameter Flat end mill for aluminum specification table:

Specifications	Flute Diameter(mm)	Flute Length(mm)	Shank Diameter(mm)	Overall Length(mm)
D0.1	0.1	0.2	4	50
D0.15	0.15	0.3	4	50
D0.2	0.2	0.4	4	50
D0.25	0.25	0.5	4	50
D0.3	0.3	0.6	4	50
D0.35	0.35	0.7	4	50
D0.4	0.4	0.8	4	50
D0.45	0.45	0.9	4	50
D0.5	0.5	1	4	50
D0.55	0.55	1.1	4	50
D0.6	0.6	1.2	4	50
D0.65	0.65	1.3	4	50
D0.7	0.7	1.4	4	50
D0.75	0.75	1.5	4	50
D0.8	0.8	1.6	4	50
D0.85	0.85	1.7	4	50
D0.9	0.9	1.8	4	50
D0.95	0.95	1.9	4	50
