Material: Carbide/0.8UM micro-particle tungsten steel raw material
HRC:56/58
Coating: bright/Nano bronze/Nano black
Applicable materials: steel, cast iron, stainless steel, aluminum and other materials
Features:
1. Smooth cutting, wide application, various specifications, and can be customized
2. Has higher wear resistance and strength
3. Source manufacturer, cheap price
| HRC | Coating | picture |

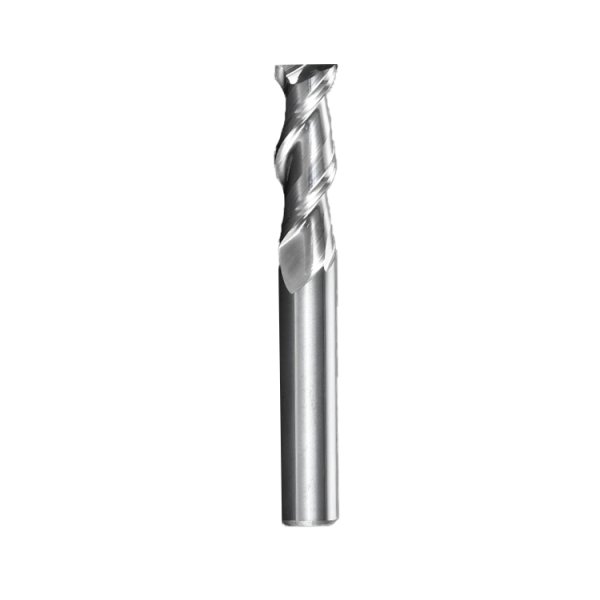

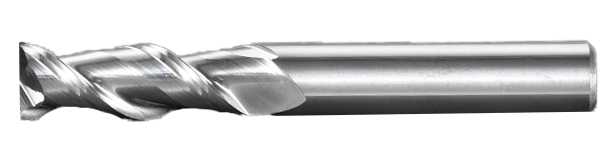

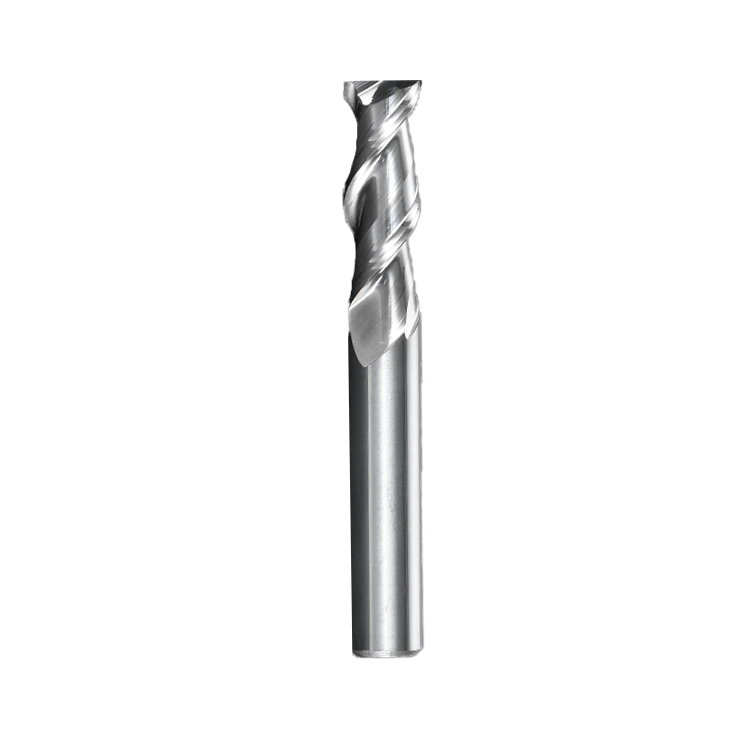

| HRC56° | bright |  |
| HRC56° | Nano bronze |  |

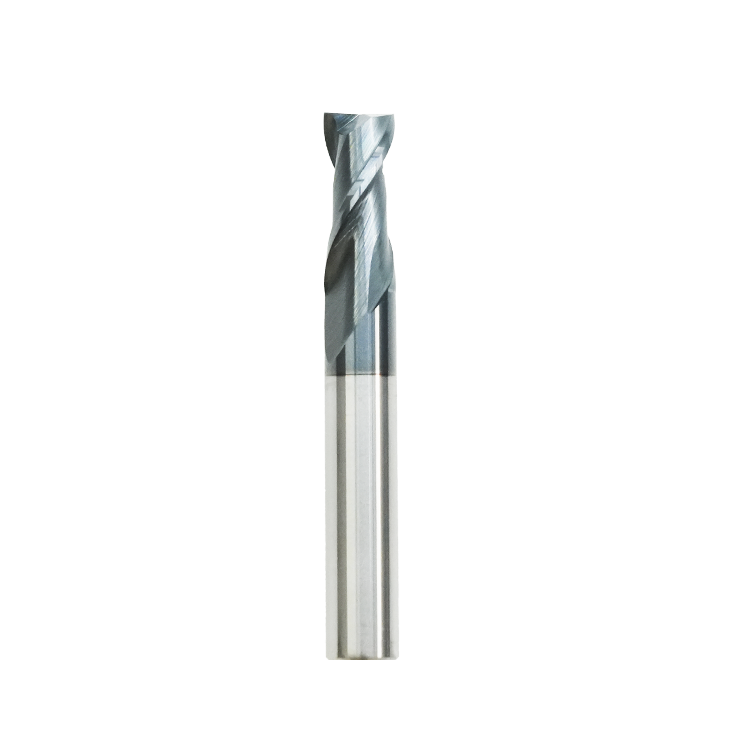

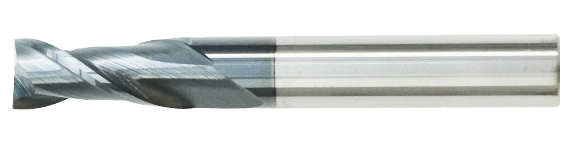

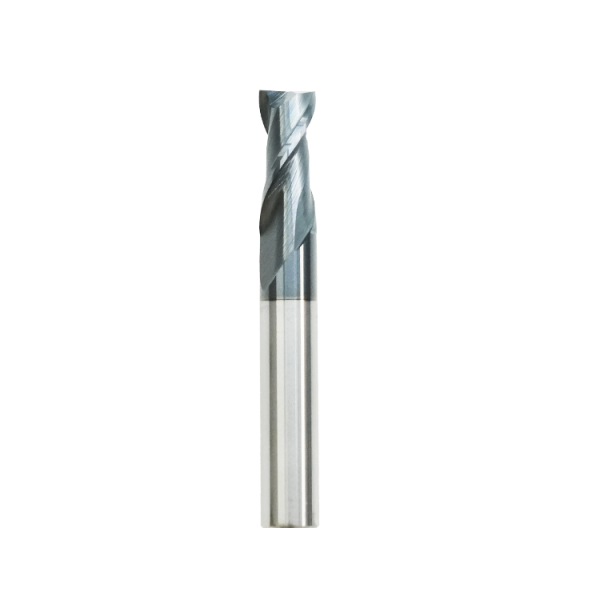

| HRC58° | Nano black |  |
Main specifications and dimensions:
| d1 | L2 | d2 | L1 | |
| Specifications | Flute Diameter(mm) | Flute Length(mm) | Shank Diameter(mm) | Overall Length(mm) |
| D1*3*D4*50L*2F | 1 | 3 | 4 | 50 |
| D1.5*4.5*D4*50L*2F | 1.5 | 4.5 | 4 | 50 |
| D2*6*D4*50L*2F | 2 | 6 | 4 | 50 |
| D2.5*7.5*D4*50L*2F | 2.5 | 7.5 | 4 | 50 |
| D3*9*D4*50L*2F | 3 | 9 | 4 | 50 |
| D3*9*D3*50L*2F | 3 | 9 | 3 | 50 |
| D3*12*D3*75L*2F | 3 | 12 | 3 | 75 |
| D3*15*D3*100L*2F | 3 | 15 | 3 | 100 |
| D3.5*10*D4*50L*2F | 3.5 | 10 | 4 | 50 |
| D4*10*D4*50L*2F | 4 | 10 | 4 | 50 |
| D4*16*D4*75L*2F | 4 | 16 | 4 | 75 |
| D4*20*D4*100L*2F | 4 | 20 | 4 | 100 |
| D5*13*D6*50L*2F | 5 | 13 | 6 | 50 |
| D5*13*D5*50L*2F | 5 | 13 | 5 | 50 |
| D5*20*D5*75L*2F | 5 | 20 | 5 | 75 |
| D5*25*D5*100L*2F | 5 | 25 | 5 | 100 |
| D6*15*D6*50L*2F | 6 | 15 | 6 | 50 |
| D6*24*D6*75L*2F | 6 | 24 | 6 | 75 |
| D6*30*D6*100L*2F | 6 | 30 | 6 | 100 |
| D8*20*D8*60L*2F | 8 | 20 | 8 | 60 |
| D8*30*D8*75L*2F | 8 | 30 | 8 | 75 |
| D8*35*D8*100L*2F | 8 | 35 | 8 | 100 |
| D10*25*D10*75L*2F | 10 | 25 | 10 | 75 |
| D10*40*D10*100L*2F | 10 | 40 | 10 | 100 |
| D12*30*D12*75L*2F | 12 | 30 | 12 | 75 |
| D12*45*D12*100L*2F | 12 | 45 | 12 | 100 |
| D14*45*D14*100L*2F | 14 | 45 | 14 | 100 |
| D16*45*D16*100L*2F | 16 | 45 | 16 | 100 |
| D18*45*D18*100L*2F | 18 | 45 | 18 | 100 |
| D20*45*D20*100L*2F | 20 | 45 | 20 | 100 |
| D6*45*D6*150L*2F | 6 | 45 | 6 | 150 |
| D8*50*D8*150L*2F | 8 | 50 | 8 | 150 |
| D10*60*D10*150L*2F | 10 | 60 | 10 | 150 |
| D12*60*D12*150L*2F | 12 | 60 | 12 | 150 |
| D14*70*D14*150L*2F | 14 | 70 | 14 | 150 |
| D16*75*D16*150L*2F | 16 | 75 | 16 | 150 |
| D18*75*D18*150L*2F | 18 | 75 | 18 | 150 |
| D20*75*D20*150L*2F | 20 | 75 | 20 | 150 |
Instructions for use:
1. Before using the tool, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the length of the tool protruding from the chuck, the better. If the tool protrudes 02 longer, the rotation speed, feed speed or cutting amount needs to be reduced.
3. During the cutting process, if the product vibrates or makes abnormal noise, please reduce the speed and cutting amount until the situation improves.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of milling cutters.
Warning: Not suitable for low-speed machines such as table rotors and hand drills
