| Material | Tungsten steel/carbide |
| Whether to support customization | YES |
| Hrc | 56° |
| Flute | 4 |
| OEM & ODM | OK |
| Suitable for | steel |

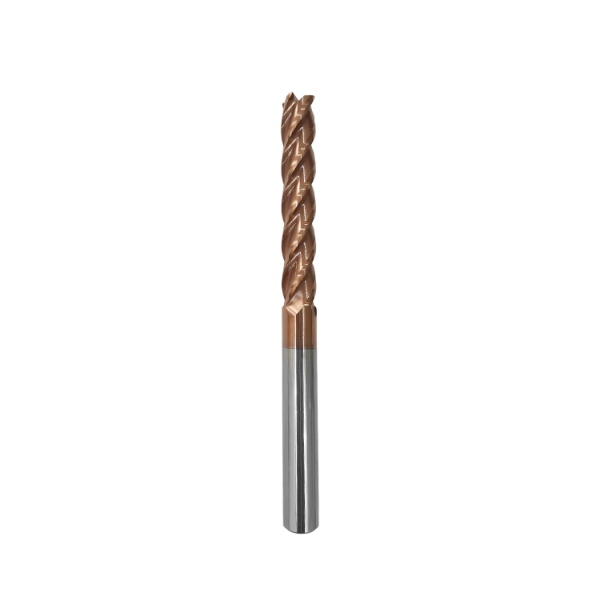

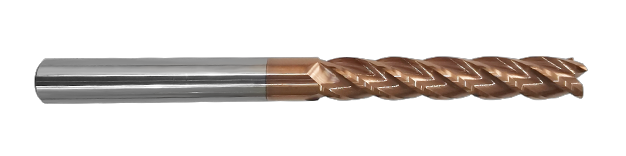

Since the processed products are equivalent to those that cannot be reached by ordinary end mills, in order to process them, the corresponding end mills can only be lengthened. The extended milling cutter is a special tool used for processing deep holes and depressions. , has the advantages of high precision and high cutting efficiency.
HRC56°-4flute extended flat milling cutter for steel specification table:
| Specifications | Flute Diameter(mm) | Flute Length(mm) | Shank Diameter(mm) | Overall Length(mm) |
| D1*5*D4*50L | 1 | 5 | 4 | 50 |
| D1*6*D4*50L | 1 | 6 | 4 | 50 |
| D1.5*6*D4*50L | 1.5 | 6 | 4 | 50 |
| D1.5*8*D4*50L | 1.5 | 8 | 4 | 50 |
| D2*8*D4*50L | 2 | 8 | 4 | 50 |
| D2*10*D4*50L | 2 | 10 | 4 | 50 |
| D2*12*D4*50L | 2 | 12 | 4 | 50 |
| D3*15*D4*50L | 3 | 15 | 4 | 50 |
| D4*12*50L | 4 | 12 | 4 | 50 |
| D6*18*50L | 6 | 18 | 6 | 50 |
| D8*24*60L | 8 | 24 | 8 | 60 |
| D10*30*75L | 10 | 30 | 10 | 75 |
| D12*35*75L | 12 | 35 | 12 | 75 |
| D10*50*100L | 10 | 50 | 10 | 100 |
| D12*50*100L | 12 | 50 | 12 | 100 |
| D16*50*100L | 16 | 50 | 16 | 100 |
