| Material | Tungsten steel/carbide |
| Whether to support customization | YES |
| Hrc | 56° |
| Flute | 4 |
| OEM & ODM | OK |
| Suitable for | steel |

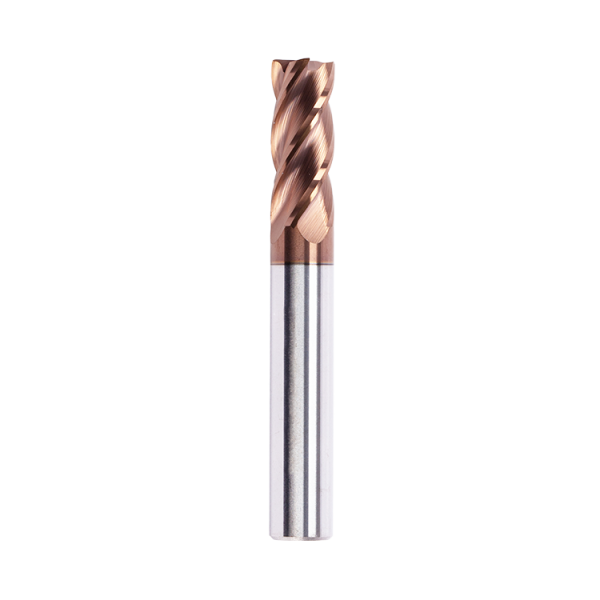

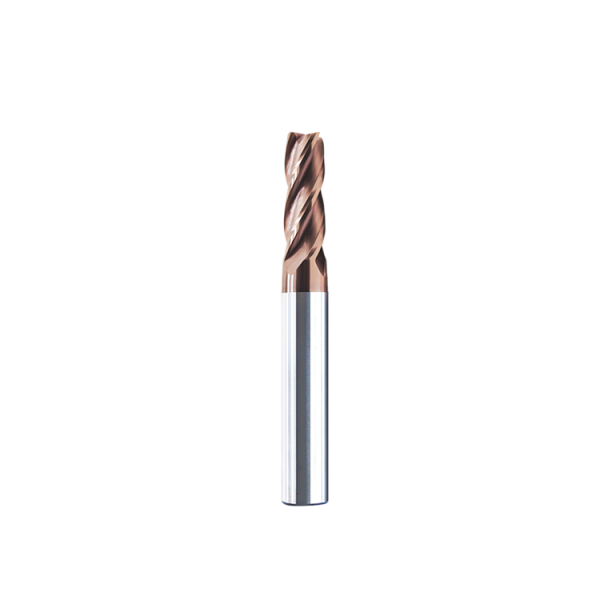

HRC56°-4Flute flat milling cutter for steel specification table：
 |
||||
| Specifications | Flute Diameter(mm) | Flute Length(mm) | Shank Diameter(mm) | Overall Length(mm) |
| D1.1*3.3*D4*50L*4F | 1.1 | 3.3 | 4 | 50 |
| D1.2*3.6*D4*50L*4F | 1.2 | 3.6 | 4 | 50 |
| D1.3*3.9*D4*50L*4F | 1.3 | 3.9 | 4 | 50 |
| D1.4*4.2*D4*50*4F | 1.4 | 4.2 | 4 | 50 |
| D1.6*4.8*D4*50L*4F | 1.6 | 4.8 | 4 | 50 |
| D1.7*5.1*D4*50L*4F | 1.7 | 5.1 | 4 | 50 |
| D1.8*5.4*D4*50L*4F | 1.8 | 5.4 | 4 | 50 |
| D1.9*5.7*D4*50L*4F | 1.9 | 5.7 | 4 | 50 |
| D2.1*6.3*D4*50L*4F | 2.1 | 6.3 | 4 | 50 |
| D2.2*6.6*D4*50L*4F | 2.2 | 6.6 | 4 | 50 |
| D2.3*6.9*D4*50L*4F | 2.3 | 6.9 | 4 | 50 |
| D2.4*7.2*D4*50L*4F | 2.4 | 7.2 | 4 | 50 |
| D2.6*7.8*D4*50L*4F | 2.6 | 7.8 | 4 | 50 |
| D2.7*8.1*D4*50L*4F | 2.7 | 8.1 | 4 | 50 |
| D2.8*8.4*D4*50L*4F | 2.8 | 8.4 | 4 | 50 |
| D2.9*8.7*D4*50L*4F | 2.9 | 8.7 | 4 | 50 |
| D3.1*9.3*D4*50L*4F | 3.1 | 9.3 | 4 | 50 |
| D3.2*9.6*D4*50L*4F | 3.2 | 9.6 | 4 | 50 |
| D3.3*9.9*D4*50L*4F | 3.3 | 9.9 | 4 | 50 |
| D3.4*10*D4*50L*4F | 3.4 | 10 | 4 | 50 |
| D3.6*10*D4*50L*4F | 3.6 | 10 | 4 | 50 |
| D3.7*10*D4*50L*4F | 3.7 | 10 | 4 | 50 |
| D3.8*10*D4*50L*4F | 3.8 | 10 | 4 | 50 |
| D3.9*10*D4*50L*4F | 3.9 | 10 | 4 | 50 |
| D4.1*10*D6*50L*4F | 4.1 | 10 | 6 | 50 |
| D4.2*10*D6*50L*4F | 4.2 | 10 | 6 | 50 |
| D4.3*11*D6*50L*4F | 4.3 | 11 | 6 | 50 |
| D4.4*11*D6*50*4F | 4.4 | 11 | 6 | 50 |
| D4.5*11*D6*50L*4F | 4.5 | 11 | 6 | 50 |
| D4.6*12*D6*50L*4F | 4.6 | 12 | 6 | 50 |
| D4.7*12*D6*50L*4F | 4.7 | 12 | 6 | 50 |
| D4.8*12*D6*50L*4F | 4.8 | 12 | 6 | 50 |
| D4.9*13*D6*50L*4F | 4.9 | 13 | 6 | 50 |
| D5.1*13*D6*50L*4F | 5.1 | 13 | 6 | 50 |
 |
||||
| Specifications | Flute Diameter(mm) | Flute Length(mm) | Shank Diameter(mm) | Overall Length(mm) |
| D5.2*13*D6*50L*4F | 5.2 | 13 | 6 | 50 |
| D5.3*13*D6*50L*4F | 5.3 | 13 | 6 | 50 |
| D5.4*13*D6*50L*4F | 5.4 | 13 | 6 | 50 |
| D5.5*14*D6*50L*4F | 5.5 | 14 | 6 | 50 |
| D5.6*14*D6*50L*4F | 5.6 | 14 | 6 | 50 |
| D5.7*14*D6*50L*4F | 5.7 | 14 | 6 | 50 |
| D5.8*15*D6*50L*4F | 5.8 | 15 | 6 | 50 |
| D5.9*15*D6*50L*4F | 5.9 | 15 | 6 | 50 |
| D6.1*15*D8*60L*4F | 6.1 | 15 | 8 | 60 |
| D6.2*15*D8*60L*4F | 6.2 | 15 | 8 | 60 |
| D6.3*16*D8*60L*4F | 6.3 | 16 | 8 | 60 |
| D6.4*16*D8*60L*4F | 6.4 | 16 | 8 | 60 |
| D6.5*16*D8*60L*4F | 6.5 | 16 | 8 | 60 |
| D6.6*16*D8*60L*4F | 6.6 | 16 | 8 | 60 |
| D6.7*17*D8*60L*4F | 6.7 | 17 | 8 | 60 |
| D6.8*17*D8*60L*4F | 6.8 | 17 | 8 | 60 |
| D6.9*17*D8*60L*4F | 6.9 | 17 | 8 | 60 |
| D7*17*D8*60L*4F | 7 | 17 | 8 | 60 |
| D7.1*17*D8*60L*4F | 7.1 | 17 | 8 | 60 |
| D7.2*18*D8*60L*4F | 7.2 | 18 | 8 | 60 |
| D7.3*18*D8*60L4F | 7.3 | 18 | 8 | 60 |
| D7.4*18*D8*60L*4F | 7.4 | 18 | 8 | 60 |
| D7.5*18*D8*60L*4F | 7.5 | 18 | 8 | 60 |
| D7.6*19*D8*60L*4F | 7.6 | 19 | 8 | 60 |
| D7.7*19*D8*60L*4F | 7.7 | 19 | 8 | 60 |
| D7.8*19*D8*60L*4F | 7.8 | 19 | 8 | 60 |
| D7.9*19*D8*60L*4F | 7.9 | 19 | 8 | 60 |
| D8.1*20*D10*75L*4F | 8.1 | 20 | 10 | 75 |
| D8.2*20*D10*75L*4F | 8.2 | 20 | 10 | 75 |
| D8.3*20*D10*75L*4F | 8.3 | 20 | 10 | 75 |
| D8.4*21*D10*75*4F | 8.4 | 21 | 10 | 75 |
| D8.5*21*D10*75L*4F | 8.5 | 21 | 10 | 75 |
| D8.6*21*D10*75L*4F | 8.6 | 21 | 10 | 75 |
| D8.7*22*D10*75L*4F | 8.7 | 22 | 10 | 75 |
 |
||||
| Specifications | Flute Diameter(mm) | Flute Length(mm) | Shank Diameter(mm) | Overall Length(mm) |
| D8.8*22*D10*75L*4F | 8.8 | 22 | 10 | 75 |
| D8.9*22*D10*75L*4F | 8.9 | 22 | 10 | 75 |
| D9*23*D10*75L*4F | 9 | 23 | 10 | 75 |
| D9.1*23*D10*75L*4F | 9.1 | 23 | 10 | 75 |
| D9.2*23*D10*75L*4F | 9.2 | 23 | 10 | 75 |
| D9.3*23*D10*75L*4F | 9.3 | 23 | 10 | 75 |
| D9.4*23*D10*75L*4F | 9.4 | 23 | 10 | 75 |
| D9.5*24*D10*75L*4F | 9.5 | 24 | 10 | 75 |
| D9.6*24*D10*75L*4F | 9.6 | 24 | 10 | 75 |
| D9.7*24*D10*75L*4F | 9.7 | 24 | 10 | 75 |
| D9.8*24*D10*75L*4F | 9.8 | 24 | 10 | 75 |
| D9.9*25*D10*75L*4F | 9.9 | 25 | 10 | 75 |
| D10.1*25*D12*75L*4F | 10.1 | 25 | 12 | 75 |
| D10.2*25*D12*75L*4F | 10.2 | 25 | 12 | 75 |
| D10.3*25*D12*75*4F | 10.3 | 25 | 12 | 75 |
| D10.4*26*D12*75L*4F | 10.4 | 26 | 12 | 75 |
| D10.5*26*D12*75L*4F | 10.5 | 26 | 12 | 75 |
| D10.6*26*D12*75L*4F | 10.6 | 26 | 12 | 75 |
| D10.7*26*D12*75L*4F | 10.7 | 26 | 12 | 75 |
| D10.8*27*D12*75L*4F | 10.8 | 27 | 12 | 75 |
| D10.9*27*D12*75L*4F | 10.9 | 27 | 12 | 75 |
| D11*27*D12*75L*4F | 11 | 27 | 12 | 75 |
| D11.1*27*D12*75L*4F | 11.1 | 27 | 12 | 75 |
| D11.2*27*D12*75L*4F | 11.2 | 27 | 12 | 75 |
| D11.3*28*D12*75L*4F | 11.3 | 28 | 12 | 75 |
| D11.4*28*D12*75L*4F | 11.4 | 28 | 12 | 75 |
| D11.5*28*D12*75L*4F | 11.5 | 28 | 12 | 75 |
| D11.6*29*D12*75L*4F | 11.6 | 29 | 12 | 75 |
| D11.7*29*D12*75L*4F | 11.7 | 29 | 12 | 75 |
| D11.8*29*D12*75L*4F | 11.8 | 29 | 12 | 75 |
| D11.9*30*D12*75L*4F | 11.9 | 30 | 12 | 75 |
| D13*45*D14*100L*4F | 13 | 45 | 14 | 100 |
| D15*45*D16*100L*4F | 15 | 45 | 16 | 100 |
