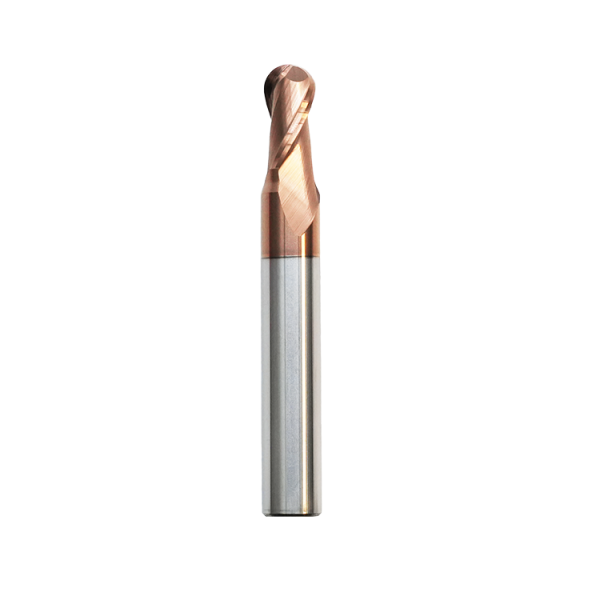

HRC56° Ball End mill For Steel

Material	Tungsten steel/carbide
Whether to support customization	YES
Hrc	56°
Flute	2
OEM & ODM	OK
Suitable for	steel

Product Detail

Key features are high nose radius accuracy for fine milling work and a proprietary coating for excellent chip flow to maintain high productivity even at low spindle speeds

	R	L2	d2	L1
Specifications	Radius(mm)	Flute Length(mm)	Shank Diameter(mm)	Overall Length(mm)
R0.552.2D450L	0.55	2.2	4	50
R0.62.4D4*50L	0.6	2.4	4	50
R0.652.6D4*50L	0.65	2.6	4	50
R0.72.8D4*50L	0.7	2.8	4	50
R0.83.2D4*50L	0.8	3.2	4	50
R0.853.4D4*50L	0.85	3.4	4	50
R0.93.6D4*50L	0.9	3.6	4	50
R0.953.8D4*50L	0.95	3.8	4	50
R1.054.2D4*50L	10.5	42	4	50
R1.14.4D4*50L	1.1	4.4	4	50
R1.154.6D4*50L	1.15	4.6	4	50
R1.24.8D4*50L	1.2	4.8	4	50
R1.35.2D4*50L	1.3	5.2	4	50
R1.355.4D4*50L	1.35	5.4	4	50
R1.45.6D4*50L	1.4	5.6	4	50
R1.455.8D4*50L	1.45	5.8	4	50
R1.556.2D4*50L	1.55	6.2	4	50
R1.66.4D4*50L	1.6	6.4	4	50
R1.656.6D4*50L	1.65	6.6	4	50
R1.76.8D4*50L	1.7	6.8	4	50
R1.87.2D4*50L	1.8	7.2	4	50
R1.857.4D4*50L	1.85	7.4	4	50
R1.97.6D4*50L	1.9	7.6	4	50
R1.957.8D4*50L	1.95	7.8	4	50
R2.259D6*50L	2.25	9	6	50
R2.7511D6*50L	2.75	11	6	50
R3.2513D8*60L	3.25	13	8	60
R3.514D8*60L	3.5	14	8	60
R3.7515D8*60L	3.75	15	8	60
R4.2517D10*75L	4.25	17	10	75
R4.518D10*75L	4.5	18	10	75
R4.7519D10*75L	4.75	19	10	75
R5.2521D12*75L	5.25	21	12	75
R5.522D12*75L	5.5	22	12	75
R5.7523D12*75L	5.75	23	12	75
R6.526D14*100L	6.5	26	14	100
R7.530D16*100L	7.5	30	16	100
