| Material | Tungsten steel/carbide |
| Whether to support customization | YES |
| Hrc | 56° |
| Flute | 3 |
| OEM & ODM | OK |
| Suitable for | Aluminum alloy, non-ferrous metals |

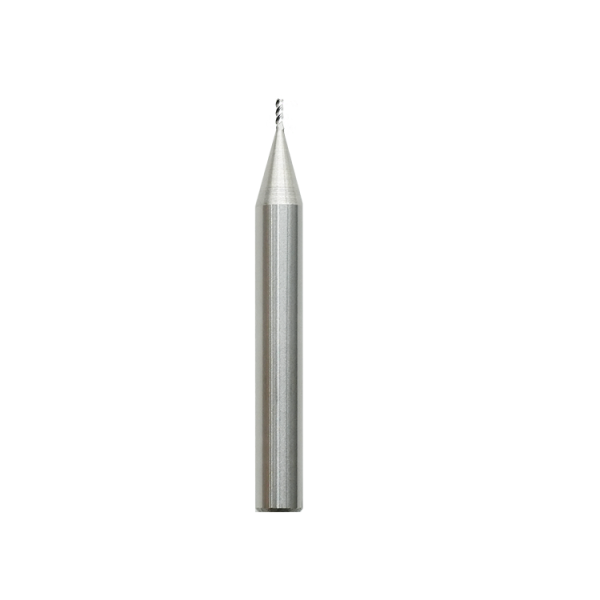

hrc 56°/3 flute extended thick shank milling cutter specification table:
d1=Flute Diameter d2=Shank Diameter L1=Overall Length L2=Flute Length
| specifications | Flute Diameter(mm) | Flute Length(mm) | Shank Diameter(mm) | Overall Length(mm) |
| D1*4*D4*75L | 1 | 4 | 4 | 75 |
| D1.5*6*D4*75L | 1.5 | 6 | 4 | 75 |
| D2*8*D4*75L | 2 | 8 | 4 | 75 |
| D2.5*10*D4*75 | 2.5 | 10 | 4 | 75 |
| D3*12*D4*75L | 3 | 12 | 4 | 75 |
| D1*5*D4*100L | 1 | 5 | 4 | 100 |
| D1.5*7*D4*100L | 1.5 | 7 | 4 | 100 |
| D2*10*D4*100L | 2 | 10 | 4 | 100 |
| D2.5*12*D4*100L | 2.5 | 12 | 4 | 100 |
| D3*15*D4*100L | 3 | 15 | 4 | 100 |
| D1*3*D6*50L | 1 | 3 | 6 | 50 |
| D1.5*4.5*D6*50L | 1.5 | 4.5 | 6 | 50 |
| D2*6*D6*50L | 2 | 6 | 6 | 50 |
| D2.5*7.5*D6*50L | 2.5 | 7.5 | 6 | 50 |
| D3*9*D6*50L | 3 | 9 | 6 | 50 |
| D4*10*D6*50L | 4 | 10 | 6 | 50 |
| D1*4*D6*75L | 1 | 4 | 6 | 75 |
| D1.5*6*D6*75L | 1.5 | 6 | 6 | 75 |
| D2*8*D6*75L | 2 | 8 | 6 | 75 |
| D2.5*10*D6*75L | 2.5 | 10 | 6 | 75 |
| D3*12*D6*75L | 3 | 12 | 6 | 75 |
| D4*16*D6*75L | 4 | 16 | 6 | 75 |
| D5*20*D6*75L | 5 | 20 | 6 | 75 |
| D1*5*D6*100L | 1 | 5 | 6 | 100 |
| D1.5*7*D6*100L | 1.5 | 7 | 6 | 100 |
| D2*10*D6*100L | 2 | 10 | 6 | 100 |
| D2.5*12*D6*100L | 2.5 | 12 | 6 | 100 |
| D3*15*D6*100L | 3 | 15 | 6 | 100 |
| D4*20*D6*100 | 4 | 20 | 6 | 100 |
| D5*25*D6*100L | 5 | 25 | 6 | 100 |
