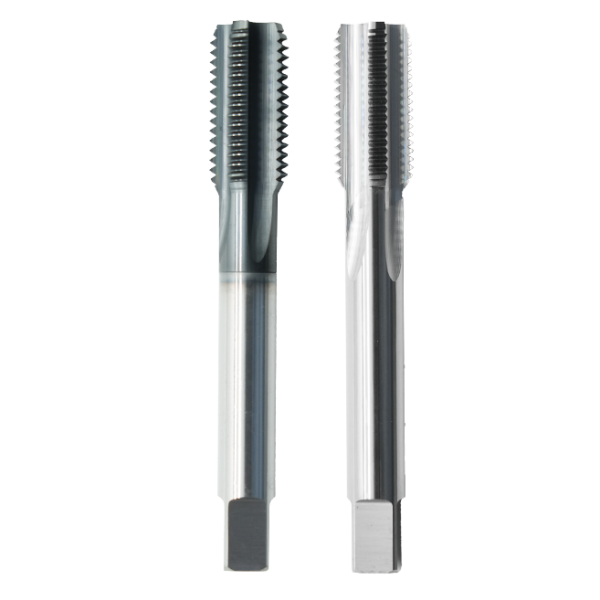

High hardness alloy straight flute taps

1. Tungsten steel material, wear-resistant and durable
2. Complete specifications, accepting non-standard customization
3. Suitable for steel, aluminum and other cast iron materials
4. Chinese source manufacturer, cheap price
5. Applicable machines: CNC machining center engraving machine and other high-speed machines

Product Detail

Alloy straight flute taps have sharp and fine threads, sharp cutting edges and high pitch, and are wear-resistant and durable.The specific sizes are as shown in the table below. If you have other specifications, please contact us directly.

Specification	Pitch(mm)	Flute Length(mm)	Overall Length(mm)	Shank Diameter(mm)
M1.6*0.35	0.35	8	42	3
M1.7*0.35	0.35	8	42	3
M1.8*0.35	0.35	9	42	3
M2.0*0.4	0.4	10	42	3
M2.5*0.45	0.45	11	42	3
M3.0*0.5	0.5	11	52	4
M3.5*0.6	0.6	12	52	4
M4.0*0.7	0.7	13	55	5
M5.0*0.8	0.8	15	60	5
M6.0*1	1	16	65	6
M8.0*1	1	18	73	6.2
M8.0*1.25	1.25	18	73	6.2
M10*1	1	21	75	8
M10*1.25	1.25	21	75	8
M10*1.5	1.5	21	75	8
M12*1.25	1 25	25	83	9
M12*1.5	1.5	25	83	9
M12*1.75	1.75	25	83	9
M14*1.5	1.5	26	90	10.5
M14*2	2	26	90	10.5
M16*1.5	1.5	29	98	12.5
M16*2	2	29	98	12.5
M18*1.5	1.5	33	100	14

FAQ:

1. Why choose tungsten steel?
Tungsten steel has relatively high strength and toughness, is not easily corroded by chemical media, and can still maintain stable physical and chemical properties after long-term use.
2. What are our advantages?
Chinese source manufacturer, cheap price, high quality
3. What materials can be processed?
Aluminum, stainless steel, mold steel, alloy steel, cast iron, quenched and tempered steel, tool steel
4. Can straight groove taps be used to tap blind holes?
You can use wire tapping to tap blind holes, but there are still many points to pay attention to when choosing wire tapping for blind holes. You must first understand the properties of the material and the depth of the hole, and tools such as straight flute taps are universal. It is strong but weak in pertinence, and its chip removal effect is not as good as that of a spiral tap. Its main function is to hold chips. The limited chip holding space determines that it cannot process too deep an effective thread, so you want to It is not impossible to tap blind holes with a straight fluted tap, but it is not the best choice.
