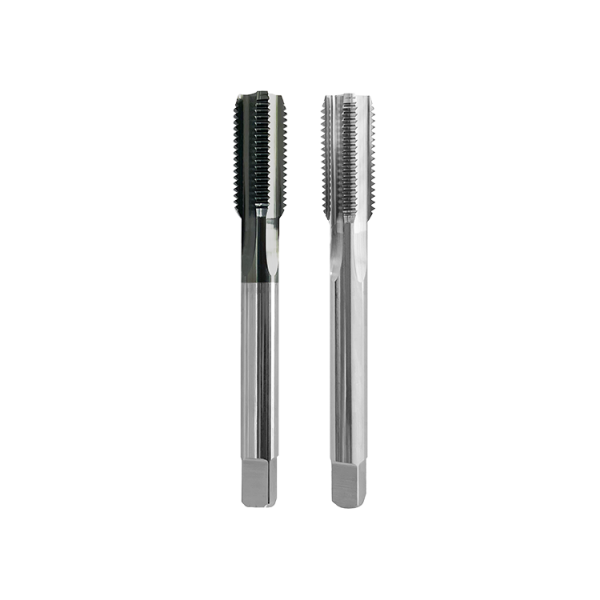

Alloy Straight Flute Tap american customary units

Alloy straight flute tap has American size standards and is made of tungsten steel with high hardness and long service life.

Non-standard customization can be accepted.

Product Detail

Specification	Flute Length(mm)	Overall Length(mm)	Shank Diameter(mm)
NO.2-56UNC	11	42	3
NO.2-64UNF	11	42	3
NO.3-48UNC	12	42	3
NO.3-56UNF	12	42	3
NO.4-40UNC	12	52	3
NO.4-48UNF	12	52	3
NO.5-40UNC	12	52	4
NO.5-44UNF	12	52	4
NO.6-32UNC	13	52	4
NO.6-40UNF	13	52	4
NO.8-32UNC	13	55	5
NO.8-36UNF	13	55	5
NO.10-24UNC	15	60	5
NO.10-32UNF	15	60	5
NO.12-32UNC	15	65	6
NO.12-28UNF	15	65	6
1/4-20UNC	17	65	6
1/4-28UNF	17	65	6
5/16-18UNC	20	72	6.1
5/16-24UNF	20	72	6.1
3/8-16UNC	22	75	7
3/8-24UNF	22	75	7
7/16-14UNC	25	83	8
7/16-20UNF	25	83	8
1/2-13UNC	25	85	9
1/2-20UNF	25	85	9

FAQ:

1. Can tungsten steel taps tap multiple materials?
Of course! Made of alloy tungsten steel base material, it can process stainless steel, steel parts, aluminum parts and other materials

2. Are tungsten steel taps wear-resistant and easily damaged?
Super wear-resistant and damage-resistant! Tungsten steel material technology improves overall wear resistance and prevents high-temperature burning of taps.

3. How does it compare with ordinary taps on the market?
①Professional-grade taps, more powerful tapping
②The material is more wear-resistant
③No fear of taper burning
④Not easy to break
⑤Higher tapping accuracy

4. Our advantages
Produced by Chinese source manufacturers, with favorable prices and good quality
