Unequally divided U-shaped groove is efficient

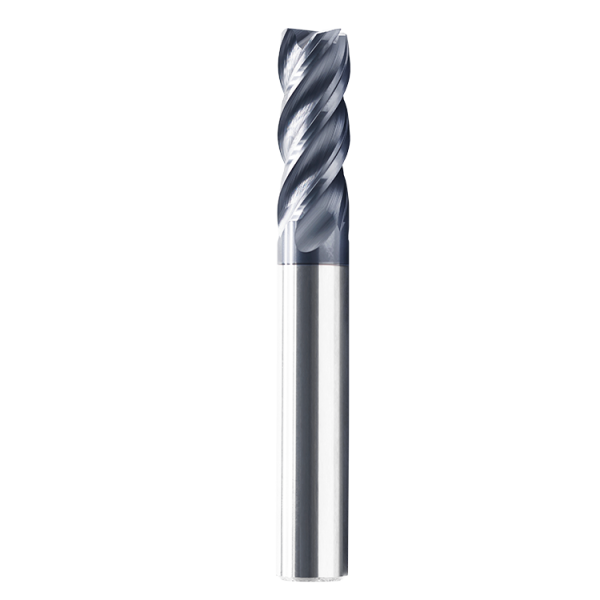

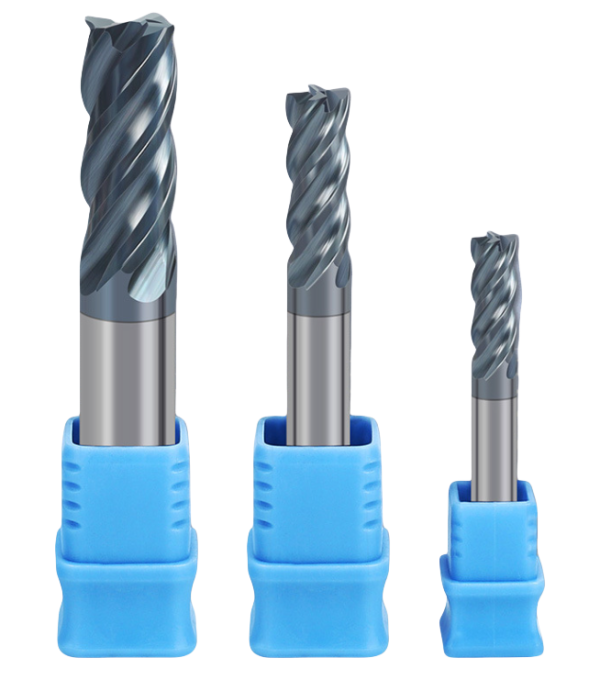

4Flute End Mill U-shaped groove

Coating: TiSiN coating
Material: Tungsten steel/tungsten carbide
Flute: 4
Applicable machine tools: CNC machining center, high-speed machine engraving machine, etc.
Features: Imported passivation equipment to increase wear resistance. Carefully ground Makes the cutting edge of the tool burr-free and increases its service life

Product Detail

Unequally divided U-shaped groove is efficient specification table：

Specification	Flute Diameter(mm)	Flute Length(mm)	Shank Diameter(mm)	Overall Length(mm)
D11D450L4F	1	1	4	50
D12D450L4F	1	2	4	50
D1.52D450L4F	1.5	2	4	50
D1.53D450L4F	1.5	3	4	50
D22D450L4F	2	2	4	50
D23D450L4F	2	3	4	50
D24D450L4F	2	4	4	50
D2.53D450L4F	2.5	3	4	50
D2.54D450L4F	2.5	4	4	50
D2.55D450L4F	2.5	5	4	50
D33D450L4F	3	3	4	50
D34D450L4F	3	4	4	50
D36D450L4F	3	6	4	50
D4450L*4F	4	4	4	50
D4650L*4F	4	6	4	50
D4850L*4F	4	8	4	50
D6650L*4F	6	6	6	50
D6850L*4F	6	8	6	50
D61050L*4F	6	10	6	50
D61250L*4F	6	12	6	50
D8860L*4F	8	8	8	60
D81060L*4F	8	10	8	60
D81260L*4F	8	12	8	60
D81560L*4F	8	15	8	60
D101060L*4F	10	10	10	60
D101260L*4F	10	12	10	60
D101560L*4F	10	15	10	60
D101860L*4F	10	18	10	60
D102060L*4F	10	20	10	60
D121260L*4F	12	12	12	60
D121560L*4F	12	15	12	60
D121860L*4F	12	18	12	60
D122060L*4F	12	20	12	60
D122460L*4F	12	24	12	60

Features:

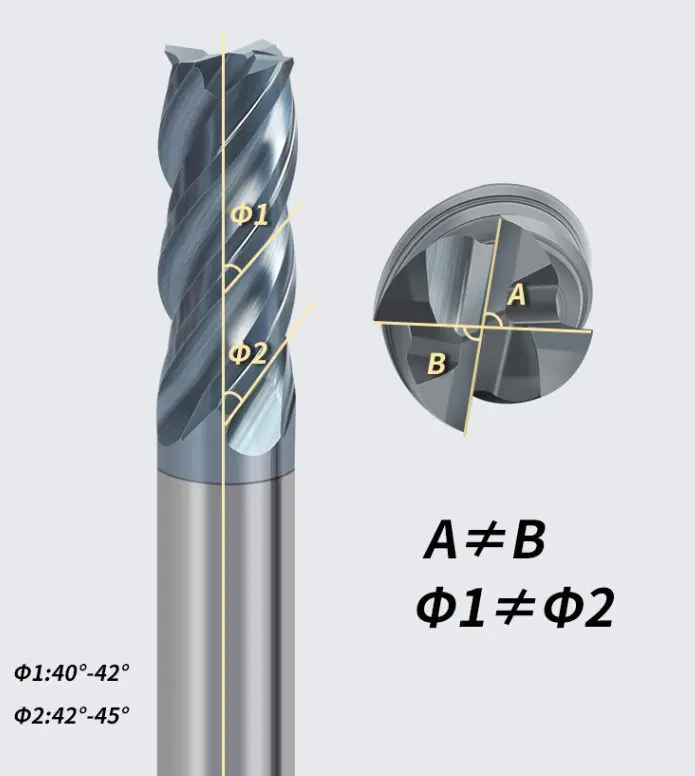

1. Unequally divided spiral design, tool tip protection, harder coating, improve the hardness of the tool, strong shock resistance and wear resistance.
2. Large core diameter design: more stable. Precision machine tools are used to grind a unique helix angle. The large core diameter design enhances rigidity and shock resistance, large chip evacuation, space is not easy to accumulate chips, is not easy to collapse, sharp and anti-wear, smooth cutting, improves milling. efficiency.
3. Unequal segmentation and unequal helix angles can effectively avoid vibration and increase smoothness.
