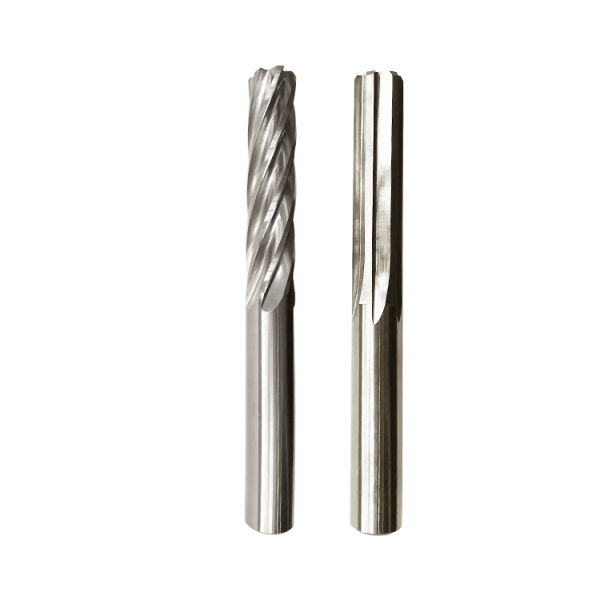

4/6Flute Carbide Alloy Straight Slot Reamer

Material: Tungsten steel/tungsten carbide
Customizable, non-standard customization
Functional use: reaming

Product Detail

Alloy Straight Slot Reamer Specification Table：

Specification	Flute Diameter(mm)	Flute Length(mm)	Overall Length(mm)	Flute	Tolerance
D450100L*4F-H7	4	50	100	4	7
D550100L*4F-H7	5	50	100	4	7
D650100L*6F-H7	6	50	100	6	7
D850100L*6F-H7	8	50	100	6	7
D1050100L*6F-H7	10	50	100	6	7
D1250100L*6F-H7	12	50	100	6	7

Features:
1. Straight groove design for smooth chip removal
2. Multiple rear angle processing, smooth chip removal, and longer service life
3. Use fine-grained tungsten steel for higher wear resistance and strength
4. The rounded outline is easy to install and use, and the chamfered tail design is anti-slip, which facilitates stable clamping and improves work efficiency.
