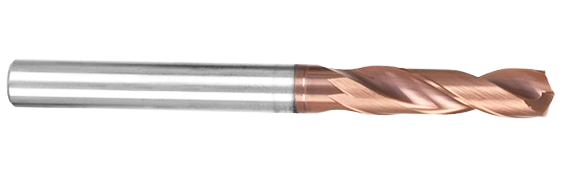

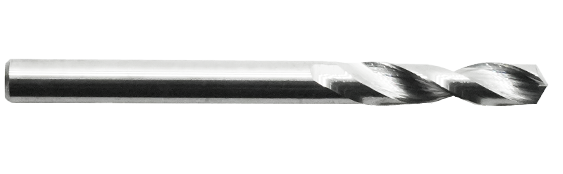

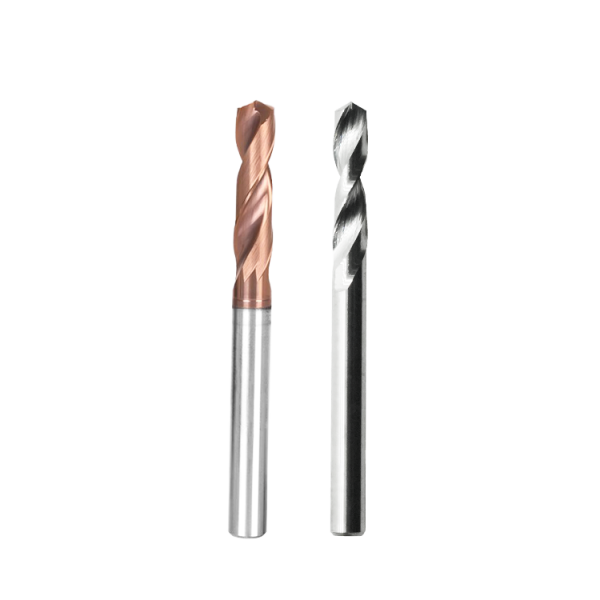

Tungsten Steel Drill Bit

1、Drill bits are available in a variety of different types and specifications, such as auger drills, flat bottom drills, etc., to meet different station hole needs.

2、Made of tungsten steel/tungsten carbide, wear-resistant and durable, long service life, cheap

3、Accept other size customization services

Product Detail

Used for	Coating	Picture
Aluminum	Uncoated
Steel	Bronze

tungsten steel drill bit specification table：

Diameter(mm)	Flute Length(mm)	Shank Diameter(mm)	Overall Length(mm)
DO. 5 -DO. 55	4	3	38
DO. 6 -DO. 95	5	3	38
D1 . 0 -D1 . 15	8	3	38
D1 . 2 -D1 .75	10	3	38
D1 . 8 -D1 . 95	11	3	38
D2 0 -D2 5	12	3	38
D2 . 55 -D2 . 95	14	3	38
Diameter interval 0.05 steps

Tungsten steel, also known as cemented carbide, refers to a sintered composite material containing at least one metal carbide. Tungsten carbide, cobalt carbide, niobium carbide, titanium carbide, and tantalum carbide are common components of tungsten steel. The carbide component (or phase) has a grain size typically between 0.2 and 10 microns, and the carbide grains are held together using a metallic binder. The binder usually refers to metallic cobalt (Co), but for some special purposes, nickel (Ni), iron (Fe), or other metals and alloys can also be used.
