| Material | Tungsten steel/carbide |
| Whether to support customization | YES |
| Hrc | 56° |
| Flute | 2 |
| OEM & ODM | OK |
| Suitable for | Steel parts, copper parts, cast iron |
1. It has high volume and can directly carry out rough machining to finishing machining on most workpieces, reducing the number of replacements.
2. Made with excellent craftsmanship, it can be processed twice and supports customization of multiple colors, specifications and models.

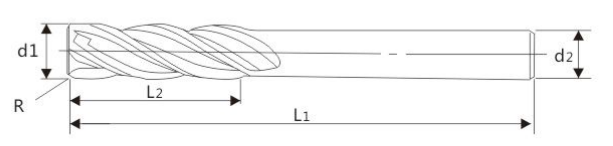

specification sheet：
| Specifications | R(mm) | d1(mm) | d2(mm) | L1(mm) |
| R3*12*120L | 3 | 12 | 6 | 120 |
| R4*16*120L | 4 | 16 | 8 | 120 |
| R5*20*120L | 5 | 20 | 10 | 120 |
| R6*24*120L | 6 | 24 | 12 | 120 |
| R4*16*200L | 4 | 16 | 8 | 200 |
| R5*20*200L | 5 | 20 | 10 | 200 |
| R6*24*200L | 6 | 24 | 12 | 200 |
| R7*28*200L | 7 | 28 | 14 | 200 |
| R8*32*200L | 8 | 32 | 16 | 200 |
| R10*40*200L | 10 | 10 | 20 | 200 |
